LCPRS LIMITED

Part 1: Field Loads Ammonia Volume Aggregator

Enter description properties, capacities, and charging parameters below. Yellow fields are fully adjustable overrides.

Description	Capacity (kW)	Filling Vol (Ltrs)

Ammonia Charge Contained in sub cooler Ltrs

Field kW Total kW

Total Ammonia Volume Ltrs

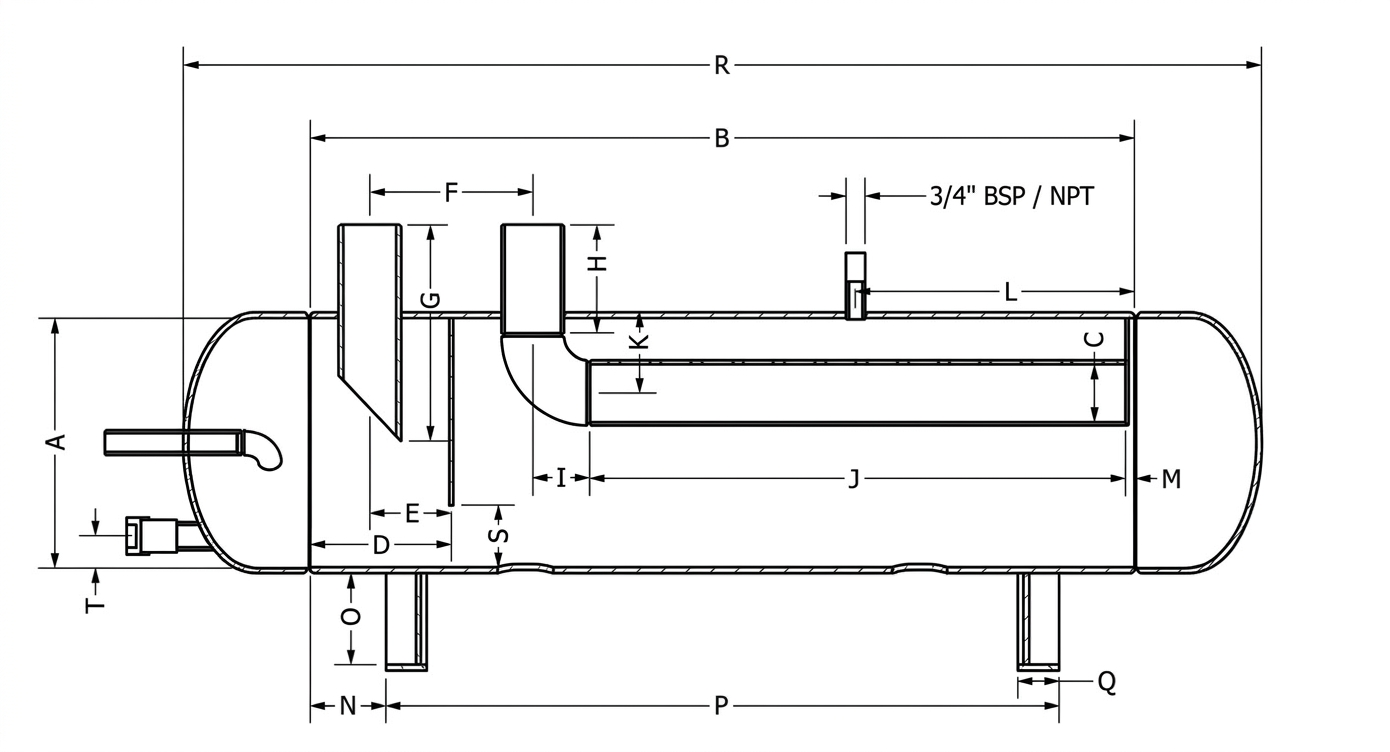

Part 2: Suction Separator Design Code: AS1210 : 2B

A = (NB) Diameter mm

(OD) Diameter mm

Pipe Schedule (Select 5 - 10 - 40 - 80) SCH

B = Strake Length mm

(NB) Suction Diameters Sch 40 profile mm

C = (ID) Internal Diameter mm

(OD) Outside Diameter mm

D = Baffle Plate mm

E = Component Dimension mm

F = Component Dimension mm

G = Component Dimension mm

H = Component Dimension mm

Insulation Thickness mm

Part 2B: Component Internal Layout System Metrics

I = Short Radius Bend (CR) mm

J = Internal Dimension mm

K = Internal Dimension mm

L = Safety Vent Offset mm

M = Support Distance In mm

N = Leg Distance In mm

O = Leg Height mm

P = Distance Across Legs mm

Q = Width of Leg Flat Bar (100 X 10) mm

R = LOA (APROX) mm

S = Baffle Plate Clearance mm

T = Sight Glass Height mm

Storage Volume (SV) Formula: SV = V x 5/8 Ltr's

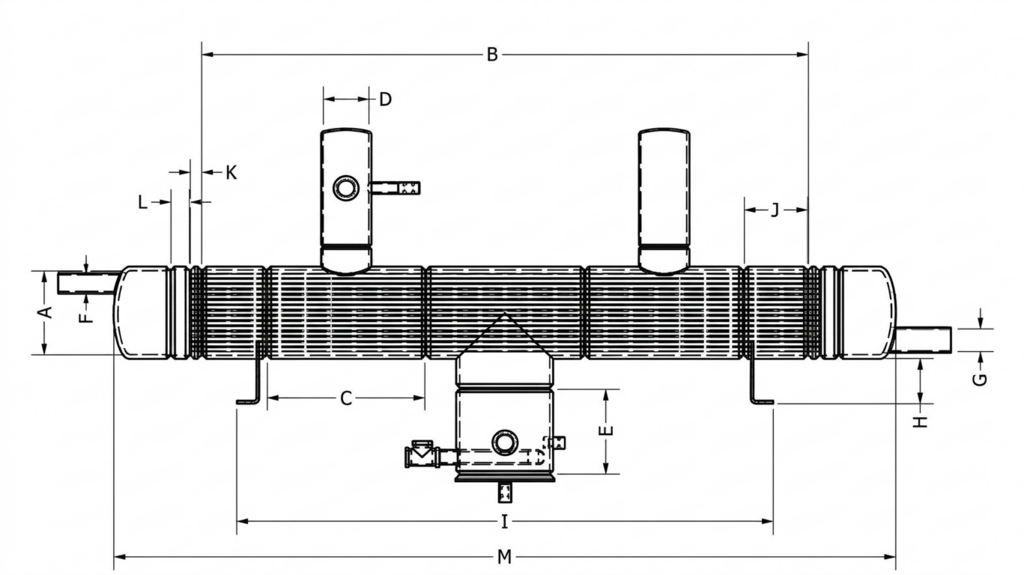

Part 3: Sub Cooler Unit Physical Dimensioning Profile

A = Pipe Dia Selected (NB) mm

B = Tube Length mm

C = Fitting Length mm

D = (NB) Diameters mm

E = Oil Collection mm

F = (NB) Liquid Outlet mm

G = (NB) Liquid Inlet mm

H = Leg Height mm

I = Distance Across Legs mm

J = Strake Stubs mm

K = Tube Plate mm

L = Spacer mm

M = Approximate LOA mm
